VDZ4.7B SOD-723_印字:92穩壓二極管YFW佑風微

佑風微原廠, 穩壓二極管VDZ4.7B中文資料,PDF數據手冊,引腳圖,封裝規格,廠家原廠VDZ4.7B上佑風微電子官網

在線詢價

瀏覽：1513 次

Zener Diodes 穩壓二極管
0.1W /SOD-723
TYPE	Marking	Zener voltage V_Z (V)			Operating resistance Z_Z (Ω )		Rising operating resistance Z_ZK ( Ω)		Reverse current I_R(uA)
		Zener voltage V_Z (V)			Operating resistance Z_Z (Ω )		Rising operating resistance Z_ZK ( Ω)		Reverse current I_R(uA)
		Min.	Max.	I_Z (mA)	Max.	I_Z (mA)	Max.	I_Z (mA)	Max.	V_R(V)
VDZ3.6B	62	3.6	3.845	5	100	5	1000	1	10	1
VDZ3.9B	72	3.89	4.16	5	100	5	1000	1	5	1
VDZ4.3B	82	4.17	4.43	5	100	5	1000	1	5	1
VDZ4.7B	92	4.55	4.75	5	100	5	800	0.5	2	1
VDZ5.1B	A2	4.98	5.2	5	80	5	500	0.5	2	1.5

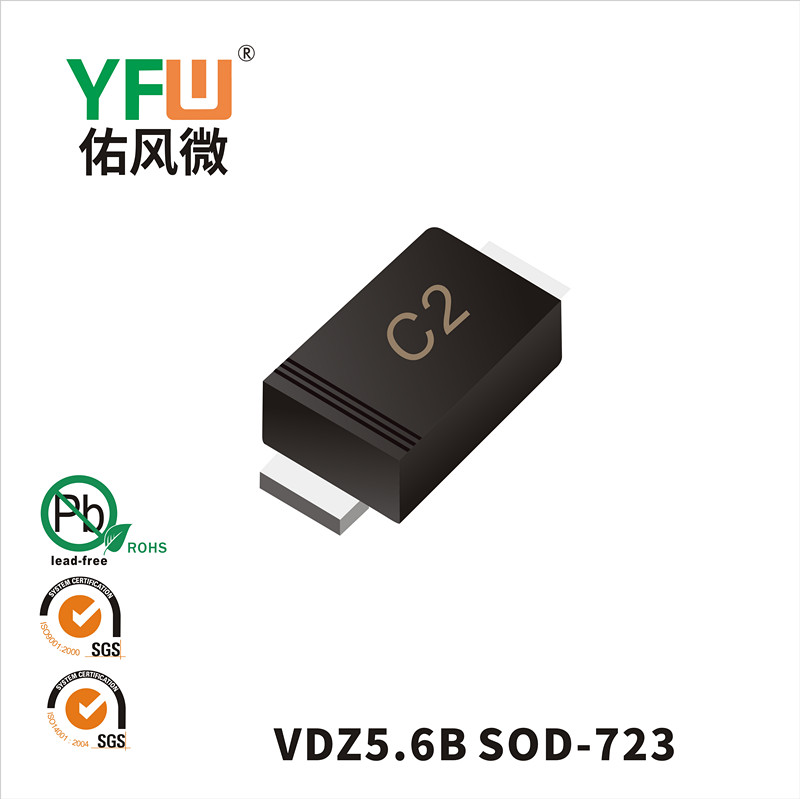

VDZ5.6B	C2	5.49	5.73	5	60	5	200	0.5	1	2.5
VDZ6.2B	E2	6.06	6.33	5	60	5	100	0.5	1	3
VDZ6.8B	F2	6.65	6.93	5	40	5	60	0.5	0.5	3.5
VDZ7.5B	H2	7.28	7.6	5	30	5	60	0.5	0.5	4
VDZ8.2B	J2	8.02	8.36	5	30	5	60	0.5	0.5	5
VDZ9.1B	L2	8.85	9.23	5	30	5	60	0.5	0.5	6
VDZ10B	5	9.77	10.21	5	30	5	60	0.5	0.1	7
VDZ11B	15	10.76	11.22	5	30	5	60	0.5	0.1	8
VDZ12B	25	11.74	12.24	5	30	5	80	0.5	0.1	9
VDZ13B	35	12.91	13.49	5	37	5	80	0.5	0.1	10
VDZ15B	45	14.34	14.98	5	42	5	80	0.5	0.1	11
VDZ16B	55	15.85	16.51	5	50	5	80	0.5	0.1	12
VDZ18B	65	17.56	18.35	2	65	2	80	0.5	0.1	13
VDZ20B	75	19.52	20.39	2	85	2	100	0.5	0.1	15
VDZ22B	85	21.54	22.47	2	100	2	100	0.5	0.1	17
VDZ24B	95	23.72	24.78	2	120	2	120	0.5	0.1	19
VDZ27B	A5	26.19	27.53	2	150	2	150	0.5	0.1	21
VDZ30B	C5	29.19	30.69	2	200	2	200	0.5	0.1	23
VDZ33B	E5	32.15	33.79	2	250	2	250	0.5	0.1	25
VDZ36B	F5	35.07	36.87	2	300	2	300	0.5	0.1	27
